The small giant that saves the day
With the A Series you get a compact tractor that delivers big productivity and all day comfort. The cabin is ergonomic and quiet, and it gives you excellent visibility in all directions.
Get exactly the right tractor for your needs
All seven A Series models are available with easy-to-use GL mechanical transmission. Our popular 105 and 115 horsepower models are also available with HiTech4 four-step powershift transmission, which is controlled electronically. All A Series tractors come with Valtra’s renowned shuttle transmission including an integrated parking brake.
The A Series is your working machine. Sit in the driver’s seat and you’ll see why. The spacious cabin lets you get straight to work, with nothing in your way and everything in easy reach.
The 5th generation A Series includes seven hard-working models, and all of them are available in GL versions with an easy-to-use mechanical transmission. The GL transmission is the best mechanical transmission ever seen in these sizes of tractor, and the 12 forward and 12 reverse gears are grouped into two to minimise lever changes.
EASY-TO-USE MECHANICAL TRANSMISSION
A mechanically straightforward design that’s easy to use. It gives you a base transmission of 12+12R – or more with the HiTech2/creeper – all implemented so you can work without fatigue.
ELECTRONIC TRANSMISSION CONTROL
A sophisticated solution with no gear levers and the right speeds to match your work, and still easy to use.
MODEL | S CHASSIS: A75 - 95 | M CHASSIS: A105 AND A115 | L CHASSIS: A125 AND A135 | |
Engine power | 75, 85, 95 hp | 105, 115 hp | 125, 135 hp | |
Engine | New STAGE V, 3-cylinder compact series engines from AGCO Power | New STAGE V 4-cylinder compact series engines from AGCO Power | New 4-cylinder Compact series engines from AGCO Power | |
Wheel base |
| 2250 mm | 2430 mm | 2500 mm |
Transmission | GL MODELS Mechanically controlled transmission | Valtra power shuttle transmission 12+12R or with HiTech2 24+24R | Valtra power shuttle transmission 12+12R | Valtra power shuttle transmission 12+12R |
HITECH 4 MODELS Electronically controlled transmission, with optional creeper | Valtra HiTech 4 with four step power shift; 16+16R transmission Electric control, no gear levers |

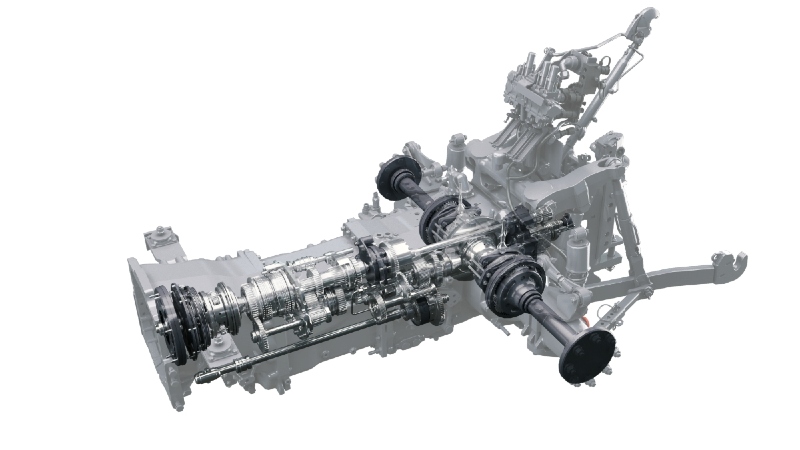

HiTech4 electrical transmission is available for M chassis models, and we have also introduced HiTech2 transmissions for S chassis models. The HiTech2 transmission has 24 forward and 24 reverse gears with 6 synchronised gears in 2 ranges. It also includes Powershuttle with 2 speed powershift and speed matching. For added precision, the HiTech2 has a wide working range with 12 gears covering speeds between 7 and 17 km/h.
All three chassis are equipped with a 12+12R transmission with six
speeds in each of the two speed ranges and optional creeper. HiTech 4 electrically controlled transmission is available for the M chassis, and it features four ranges and four powershift gears, with an optional creeper. All models come with four wheel drive and Autotraction as standard.
With the 5th generation A Series, you get more power from the advanced and compact engines. All medium to large chassis models with four cylinder engines now deliver 5 hp more than the previous generation.

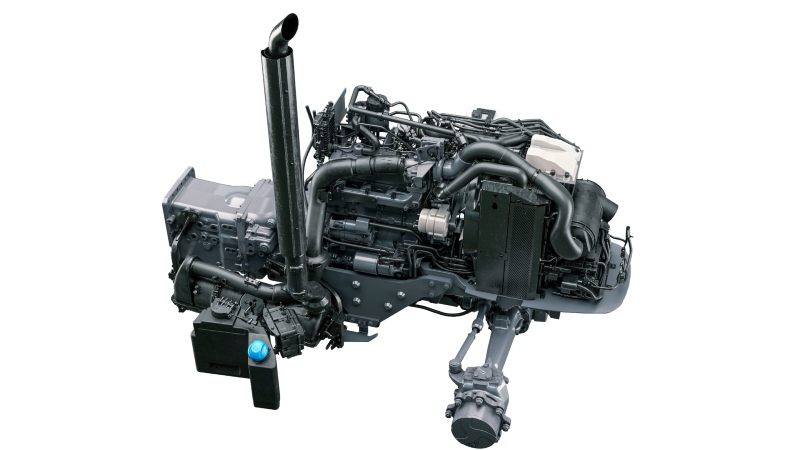

The latest A Series models are powered by AGCO POWER MBTN-D5 engines. The three smallest models have three cylinder 3.3 litre engines, while the four biggest models have four cylinder, 4.4 litre engines. These user-friendly engines are packed with state-of-the-art technology, like common rail 1600 bar fuel injection and four-valve cylinder heads, and have a service interval of 600 hours.
The compact engine means the bonnet can be smaller to give you a clear driving-direction view. The Stage V exhaust after-treatment unit is located under the cabin for optimal visibility. The complete package includes DOC, DPF and SCR using AdBlue and because there is no Exhaust gas recirculation (EGR), the engine always uses fresh, clean air.
The sloping bonnet and large windows give you a clear view of your working area, and the front loader subframe is integrated into the tractor chassis at the factory for flawless operation.
The balanced chassis makes working with Valtra’s high quality front loaders easy and dependable. The great visibility and electronic control make it even better.
Efficient and productive
Affordable purchase is just the start of the story; compare the low fuel and service costs against the performance of the machine see how much you profit.
We make it easy to build the perfect Valtra tractor. We offer hundreds of different accessories and options to choose from, adding up to an infinite number of different combinations. But picking and choosing can be difficult, which is why we now offer cost-effective option packages to help you with decision-making.
The option packages make it easier to specify a new tractor: nothing important is left out and the resale price of the tractor is also taken into account. When purchased as a package, the equipment is less expensive than when ordered separately.
Best of all, the option packages do not limit you from selecting additional features from the Unlimited Studio.
There’s always a reason to go Unlimited. What do you need? What have you been dreaming of? Done and done. We make it happen. Available for HiTech 4 models.
Form, function and style
Valtra Unlimited gives you more possibilities for versatility, from front loaders and PTO to special colours for municipality use. 5th generation A Series tractors are ready to work in reverse, and with Unlimited studio you can tailor your tractor to handle professional forest work, with features including forest protection and timber handling equipment. You can also choose the cab finish and you can make special requests to take your individual tractor experience to a higher level.
Factory fitted
All the accessories and equipment fitted by the Valtra Unlimited studio are covered by the factory warranty, and we also supply all the servicing and spare parts for them. The accessories and equipment available from the Unlimited Studio include additional lights, central lubrication, stereo systems and much more.
MAX POWER | MAX. TORQUE NM | ||
---|---|---|---|
MODEL | HP | kW | STD |
A75 | 75 | 56 | 315 |
A85 | 85 | 63 | 350 |
A95 | 95 | 70 | 355 |
A105 | 105 | 78 | 435 |
A115 | 115 | 86 | 455 |
A125 | 125 | 93 | 520 |
A135 | 135 | 100 | 540 |
